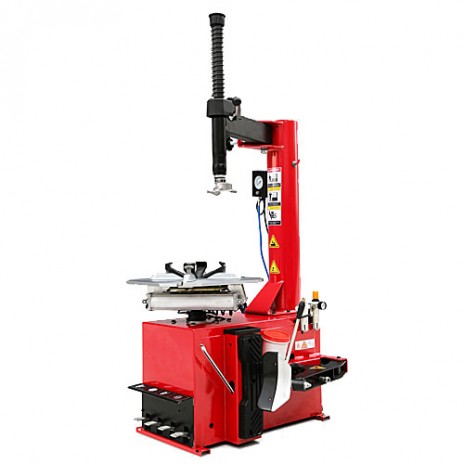

24" diameter semi automatic tire changer of description
Rim clamp from outside: 10''-22''
Rim clamp from inside: 12''-24''
Max.wheel diameter:1040 MM
Tire width: 3''-15''
Working pressure: 8-10 bar
Voltage:380 V/220 V/ 110V
Power: 0.75 KW/1.1 KW
Machine weight: 186 KG
24" diameter semi automatic tire changer of feature
1. Semi-automatic lateral swinging arm to change tyres.
2. It can suit different rim ranges to adjust mobile slider.
3. The changing working head , jaws, crowbar and spade are all equipped with protector to ensure no hurt to the rim.
4. We can promise the strenth, toughness and wear-resistance, it is after high-frequency quenching and hard chrome plated surface.
5. We have motion structure of four automatic alignment gripping jaws on the swivel plate as link mechanism, has synchronization
performance and it can self-centering when gripping from outside to inside.
6. It is not easy to deformation of the one formation mobile sliderand the design of processing machinery.
7. The personal presentation is well, the plate is thick steel and the rigidnss is super strong.
