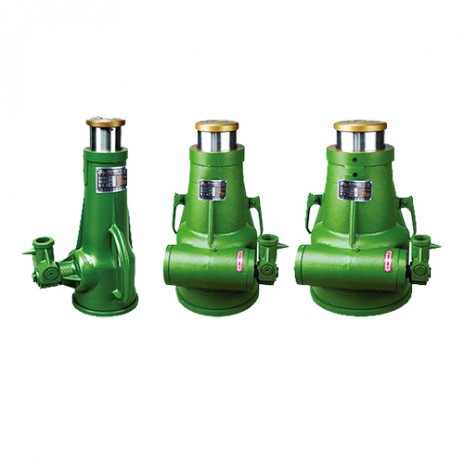

3.2-200 T Protable Low Profile Hydraulic Jack Data
| Product Name | Protable Screw Jack | |||
| SKU | Lifting Weight (T) | Min Height (mm) | Lifting Height (mm) | Max Height (mm) |
| 320076 | 3.2 | 220 | 110 | 330 |
| 320077 | 5 | 250 | 130 | 380 |
| 320078 | 8 | 260 | 140 | 400 |
| 320079 | 10 | 280 | 150 | 430 |
| 320080 | 16 | 320 | 180 | 500 |
| 320081 | 20 | 325 | 180 | 505 |
| 320082 | 25 | 275 | 130 | 405 |
| 320083 | 32 | 395 | 200 | 595 |
| 320084 | 50 | 452 | 250 | 702 |
| 320085 | 100 | 452 | 200 | 652 |
| 320086 | 200 | 472 | 200 | 672 |
3.2-200 T Protable Low Profile Hydraulic Jack Packing
| SKU | Size (cm) | QTY/CTN (pcs/ctn) | N.W. (KG) | 1x20' Container (pcs) |
| 320076 | 53.5x26x16 | 4 | 4.9 | 4400 |
| 320077 | 55x28.7x18 | 4 | 6.4 | 3400 |
| 320078 | 35.5x27.7x18 | 4 | 6.5 | 3500 |
| 320079 | 51x31.5x19.5 | 3 | 8.6 | 2550 |
| 320080 | 56x36.5x22.5 | 3 | 11.9 | 1800 |
| 320081 | 56x36.5x22.5 | 3 | 12.5 | 1800 |
| 320082 | 44.5x42x23.5 | 3 | 11.1 | 1900 |
| 320083 | 49x23.5x26.5 | 2 | 20.1 | 1100 |
| 320084 | 50x39x31 | 1 | 36.2 | 610 |
| 320085 | 55x28.7x18 | 1 | 71.7 | 300 |
| 320086 | 57x49x42 | 1 | 130 | 170 |
3.2-200 T Protable Low Profile Hydraulic Jack Features
1. The base is thick, it is more stable when we use the Jack.
2. The high quality screw can adjust the height and the screw do not easy to be corroded.
3. The jack has a handle which is convenient for workers to use.
4. Ratchet can avoid skid and distortion when the jack is rising or falling.
3.2-200 T Protable Low Profile Hydraulic Jack Advantage
The jack has a handle which is convenient for workers to use. The handle is a part of the screw jack. So the max weight of the handle is more than others. Ratchet can avoid skid and distortion when the jack is rising or falling. The ratchet of the jack can make workers safer. The max lifting weight of screw jack is 200 T and the screw jack cover a few place. The base of the jack is very thick so the jack is very stable.
