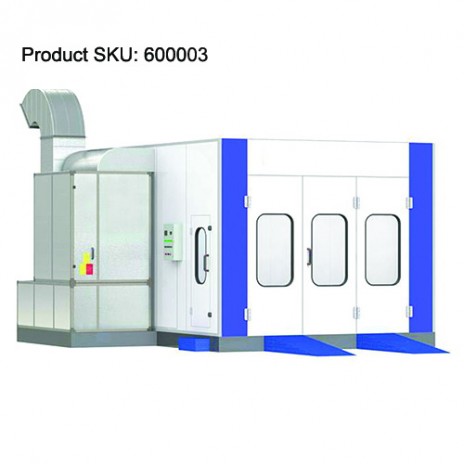

Automative 50KW down draft spray booth 600003
| Down Draft Spray Booth Room Structure | |
| Equipment Dimension | 699*587*333cm |
| External Room Dimension | 699*432*333cm |
| Internal Room Diemension | 687*420*265cm |
| Roof Meteral | 0.8mm galvanizing metal |
| Door Size | 300*260cm metal plate door |
| Door Configuration | 1. Door latch |
| 2. Aluminum hinge | |
| 3. EPDM seal strip | |
| 4. Toughened glass type observation window | |
| 5. Pale grey color door | |
| Room Configuration | 1. Front pillar is aluminum pillar |
| 2. Rear pillar is white powder coating alumium board | |
| 3. Other parts are galvanized board | |
| Base Configuration | 1. 280mm Height |
| 2. Front pillar is 1.5mm folded aluminum board | |
| 3. Side pillars are 1.2mm folded board | |
| Wall Configuration | 1. Coated 0.426mm color steel board on surface. |
| 2. 58mm thermokeeping rock wool board in the wall. | |
| Brace | 80*40*2 rectangular brace |
| Floor | 1. 2 rows 30*5 flat steel grille type bar. |
| 2. 3 rows 4mm tread plate. | |
| 3. Glass fibre paved down the tread plate. | |
| 4. Air flow change plate. | |
| Ramp | 4 Ramp and 1 Step |
| Down Draft Spray Booth Filtering System | |
| Ceiling Filter | Pre bag filter+Hepa C600 filter |
| Air Exhausting Filter | Glass fiber filter+Active carbon adsorption |
| Filtration efficiency | 98% |
| Filter Frame | 1. Powder coating C type steel |
| 2. 1.5mm aluminum crossbeam | |
| 3. 1.2mm aluminum longeron | |
| 4. Bolt fastening | |
| Noise | ≤85 dB(A) |
| TSP valve | ≤1.5mg/m³ |
| Down Draft Spray Booth Heating System | |
| Thermal exchanger | 1. 13 set directional radiant heater |
| 2. 4 sets sliding on the side wall | |
| 3. 2 sets fixed on the rear wall | |
| 4. 3 sets sliding at the top | |
| 5. 2.6KW/set | |
| Temperture | 20-60°C |
| Heating time | (20°C-60°C) 12-20min |
| Heater Frame | 1. Section bar frame |
| 2. 1.2mm galvanized board on frame surface. | |
| 3. Bolt fastening | |
| Heat exchange efficiency | 95% |
| Radiator Installed Power | 33.8KW |
| Down Draft Spray Booth Lighting System | |
| Lamp | 1. 10 sets 4*36W side lamp oblique 45° Installed |
| 2. Philips lamp | |
| 3. Special rectifier | |
| LUX | ≥800 |
| Down Draft Spray Booth Electrical Control System | |
| Power | 50.58KW |
| Electrical System | 1. Six-way control contactor |
| 2. Six way control radiator | |
| 3. Over current protection | |
| 4. Overload protection | |
| 5. Short circuit protection | |
| 6. Phase loss protection | |
| 7. Precision control box | |
| Down Draft Spray Booth Air Supply System | |
| Blower | 2 units of 4KW Centrifugal air blowers |
| Spary measure | 3.3 kg/h |
| Blower Base | 1. Dimension 2800*1450*820 |
| 2. Air volume 24000 m³/h | |
| 3. Loaded Air flow 0.3m/s | |
| 4. Rock wool board inside of the frame to reduce noise. | |
| 5. Single-lay galvanized mask on frame surface. | |
| 6. Section bar frame | |
| Down Draft Spray Booth Air Exhausting System | |
| Air exhauster | 1. 2 units of 4KW Centrifugal air blowers |
| 2. Glass fiber filter | |
| 3. Active carbon adsorption | |
| Air exhaust frame | 1. 1090*1450*820 |
| 2. Section bar frame | |
| 3. 0.8mm galvanized board on frame surface | |
| 4. Rock wool board inside of the frame to reduce noise | |
| Air duct | 1. 2 section 700*700*1250 air ducts |
| 2. 2 section 150° elbow air ducts. | |
| 3. 0.8mm galvanized metal. | |
