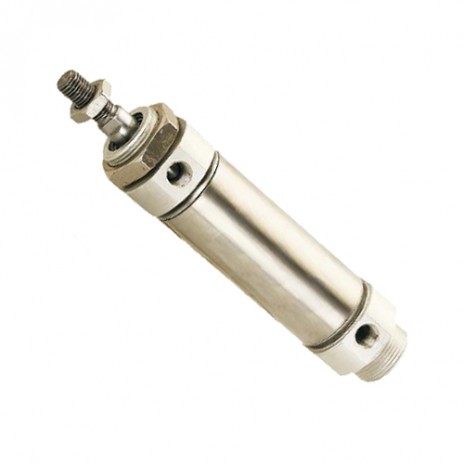

CDM2B magnetic piston air cylinder Double Action Type :
| SKU | 357056 | 357057 | 357058 | 357059 | |
| Bore | 20 | 25 | 32 | 40 | |
| Working Medium | Air | ||||
| Motion Pattern | Double Action | ||||
| Ensured Pressure Resistance | 15.3kgf/cm2(1.5Mpa) | ||||
| Max.Pressure | 10.2kgf/cm2(1.0Mpa) | ||||
| Min.Pressure | 0.5kgf/cm2(0.05Mpa) | ||||
| Operating Temperature Range | -10-70℃ | ||||
| Operating Speed Range | 50-750mm/s | ||||
| Buffering | Rubber Buffer(Standard),Air Buffer(Optional) | ||||
| Port Size | G1/8" | G1/4" | |||
Feature:
1.The material is stainless steel so the cylinder strength is high.
2.It has a variety of models to choose.
3.The system structure is very simple to install.
4.The front and rear cover and the cylinder body adopt the riveting roll
package structure, so the connection is reliable.
5.It occupies a small size.
