Beschreibung
Details

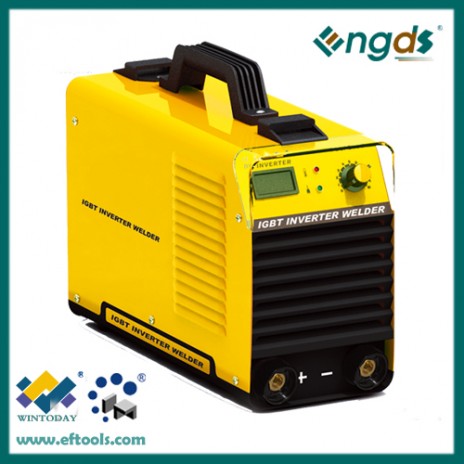

-Use IGBT technology,greatly improves the reliability of the machine.
-High duty cycle,greatly improves the efficiency of welder,energy saving.
-Small size,stable and durable quality.
-Easy to start arc,little spatter,and good formation.
| Item# | 353001 | 353002 | 353003 |
| Power voltage | 220-240V | 220-240V | 220-240V |
| Max input power | 5.2KVA | 6.0KVA | 8.2KVA |
| Fuse | 22A | 26.1V | 37V |
| Efficiency | 83% | 83% | 85% |
| Power factor | 0.7 | 0.7 | 0.7 |
| Max No load voltage | 67V | 67V | 67V |
| Current range | 10-140A | 10-160A | 10-200A |
| Max current | 140@60% | 160@60% | 200@60% |
| Current at 100% | 108A | 124A | 155A |
| Usable electrode | 1.6-4.0MM | 1.6-4.0MM | 1.6-5.0MM |
| Insulation class | F | F | F |
| Protection class | IP21S | IP21S | IP21S |
| Weight | 4.5/5.4KG | 5.4/6KG | 8.6/9.8KG |
| Size | 360x235x310mm | 360x235x310mm | 460X255X355mm |
Packing&Shipping
According to the customer's need,we ship goods by air,sea and express.
Packiing:Standard Carton.
Delivery Detail:30-35 days after received the 30 percent deposit.
