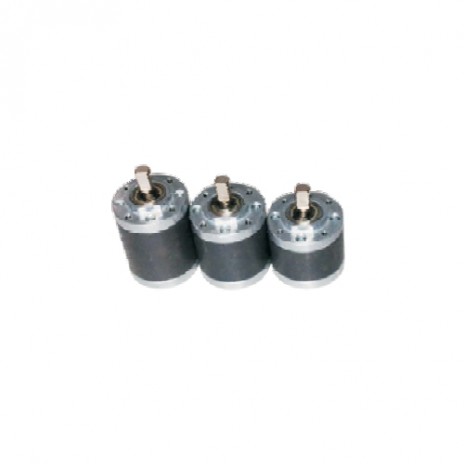

China Sale Low Price Planetary Gear 171033

Notes

Housing material:Metal.
Backlash,at no-load:≤1.0°.
Bearing at output:Ball bearings.
Radial play of shaft:≤0.05mm.
Thrust play shaft:≤0.3mm.

Artikelposition: 171033

about Engdas Tools

engdas company

Beschreibung

Details

Notes
Housing material:Metal.
Backlash,at no-load:≤1.0°.
Bearing at output:Ball bearings.
Radial play of shaft:≤0.05mm.
Thrust play shaft:≤0.3mm.

Attention:The broken torque of the gearbox is 30kgf.com.When the motors using at low speed,high gear ratio,please choose low power motors,and no protection measurements.

Pinion Specifications
Module 0.5 0.5
No. of teeth 11 17
Pressure angle 20°
Hole dimameter φ1.98, φ2.28, φ3.14
Reduction ratio 4.6, 15.5, 21.5, 52.1, 72, 100, 174
241, 334, 462, 585, 810
1120, 1549, 2142
33.3, 11.2, 37.7
126, 423
Operating temperature range -10℃~+60℃
Operating relative humidity 20%~85%RH



Gearboxes Specifications
Reduction ratio Rated tolerance torque Max breaking torque Efficiency No. of stages Gearbox Length "L"mm
3.3, 4.6 5.0kgf.cm 15.0kgf.cm 90%  1  20.7
11.2, 15.5, 21.5 10.0kgf.cm  30.0kgf.cm  81%   2  26.4
37.7, 52.1, 72, 100 25.0kgf.cm  75.0kgf.cm  73%   3  32.2
126, 174, 241, 334, 462 25.0kgf.cm  75.0kgf.cm  65%  4 38.0
423, 585, 810, 1120, 1549, 2142 25.0kgf.cm  75.0kgf.cm  59%   5  43.8
