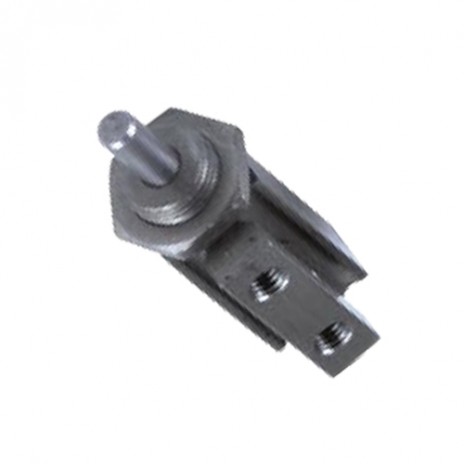

CJP Needle Type Cylinder spring return air cylinder :
| SKU | 357161 | 357162 | 357163 | |
| Bore | 6 | 10 | 15 | |
| Fluid | Air | |||
| Motion Pattern | Single Action-Spring pressure back | |||
| Ensured Pressure Resistance | 1.05Mpa(10.5kgf/cm2) | |||
| Max.Pressure | 0.7Mpa(7.0kgf/cm2) | |||
| Min.Pressure | 0.15Mpa(1.5kgf/cm2)/0.2Mpa(2kgf/cm2) | |||
| Environment and Fluid Temp | 5-60℃ | |||
| Buffer | No Buffering | |||
| lubrication | NOT Need | |||
| Port Size | M5×0.8 | |||
Feature:
1.It is small in size and suitable for tight confined spaces.
2.It has two functions which has large output force and proportional to the
Square of the cylinder diameter.
3.There are various sizes can be chosen.
4.Hard surface treatment which has high strength.
