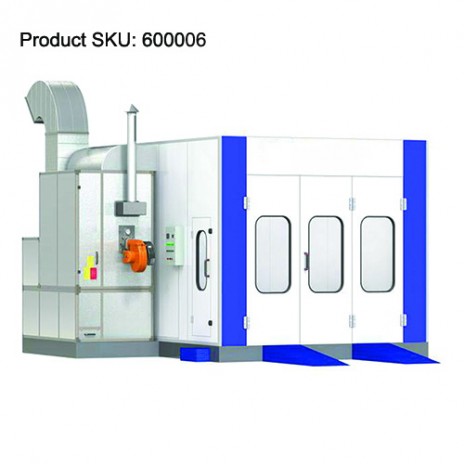

Spray bake paint booth 600006
| Spray bake paint booth Room Structure | |
| Equipment Dimension | 699*556*333cm |
| External Room Dimension | 699*401*333cm |
| Internal Room Diemension | 687*389*265cm |
| Roof Meteral | 0.8mm galvanizing metal |
| Door Size | 300*260cm door |
| Door Configuration | 1. Door latch |
| 2. Aluminum hinge | |
| 3. EPDM seal strip | |
| 4. Toughened glass type observation window | |
| Room Configuration | 1. Front pillar is aluminum pillar. |
| 2. Rear pillar is white powder coating alumium board. | |
| 3. Other parts are galvanized board. | |
| Base Configuration | 1. 280mm Height |
| 2. Front pillar is 1.5mm folded aluminum board | |
| 3. Side pillars are 1.2mm folded board. | |
| Wall Configuration | 1. Coated 0.426mm color steel board on surface. |
| 2. 58mm thermokeeping rock wool board in the wall. | |
| Brace | 4 rows 80*40*2 rectangular brace. |
| Floor | 1. 2 rows 30*5 flat steel grille type bar. |
| 2. 3 rows 4mm tread plate. | |
| 3. Glass fibre paved down the grille typr bar. | |
| Ramp | 2 Ramp and 1 Step. |
| Spray bake paint booth Filtering System | |
| Ceiling Filter | Pre bag filter+Medium C600 filter |
| Air Exhausting Filter | Glass fiber filter+Active carbon adsorption |
| Filtration efficiency | 98% |
| Filter Frame | 1. Powder coating C type steel |
| 2. 1.5mm aluminum crossbeam | |
| 3. 1.2mm aluminum longeron | |
| Noise | ≤85 dB(A) |
| TSP valve | ≤1.5mg/m³ |
| Spray bake paint booth Heating System | |
| Thermal exchanger | 1. 14 tube thermal exchanger |
| 2. Argon arc welding method | |
| 3. Ternary cycle design | |
| 4. Explosion proof valve | |
| 5. 26 Ka/h | |
| Temperture | ≤80°C |
| Heating time | (20°C-60°C) 5-6min |
| Fuel consumption | 4-5kg/unit |
| Heater Frame | 1. Section bar frame |
| 2. Galvanized board on frame surface. | |
| Heat exchange efficiency | 93% |
| Spray bake paint booth Lighting System | |
| Lamp | 1. 8 sets 4*36W side lamps oblique 45° Installed |
| 2. Philips lamp | |
| 3. Special rectifier | |
| LUX | ≥800 |
| Spray bake paint booth Electrical Control System | |
| Power | 17.13KW |
| Electrical System | 1. Over current protection |
| 2. Overload protection | |
| 3. Short circuit protection | |
| 4. Phase loss protection | |
| 5. Precision control box | |
| Spray bake paint booth Air Supply System | |
| Blower | 2 piece 3KW Centrifugal air blower |
| Spary measure | 3.75 kg/h |
| Blower Base | 1. Dimension 2500*1450*820 |
| 2. Air volume 24000 m³/h | |
| 3. Loaded Air flow 0.3m/s | |
| 4. Section bar frame | |
| 5. Pre bag filter | |
| Spray bake paint booth Air Exhausting System | |
| Air exhauster | 1. 1 piece 3KW Centrifugal air blower |
| 2. Glass fiber filter | |
| 3. Active carbon adsorption | |
| Air exhauster frame | 1. 790*1450*900 |
| 2. Section bar frame | |
| 3. 1.2mm galvanized mask on frame surface | |
| Air duct | 1. 2 section 600*600*1250 air ducts |
| 2. 1 section 150° elbow air duct | |
| 3. 0.8mm galvanized metal | |
