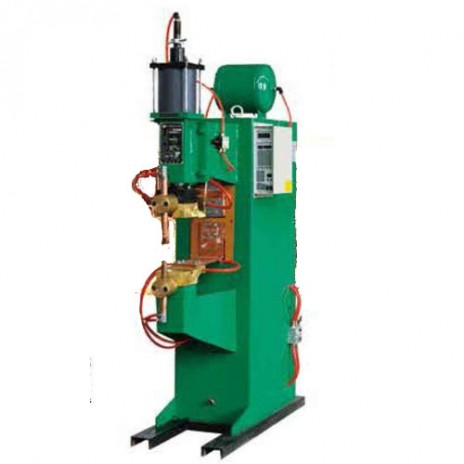

DTN Series DN Series Spot Welding Different Model 364003

DTN Series DN Series Spot Welding Different Model 364003

DTN Series DN Series Spot Welding Different Model 364003-364008:

Features:
DTN series spot welding is the Pneumatic resistance welding machine,combine the spot welding function with the projection welding function.Accurate control since form a complete set of microcomputer controller and the working stroke is stepless.The body of machine is made by bending and welding steel sheets,which makes the products high strength and stability weld.The overall used the modular installation which compact , reasonable structure and convenient maintenance.Widely used in car,metal plate,aviation and Machine building industry. It can perform a high quality of spot welding and projection welding to low steel,stainless steel and coated steel.

Artikelposition: 364003

Hinzufügen um zu vergleichen

Beschreibung

Details

DTN Series DN Series Spot Welding Different Model 364003-364008:

The following information can be changed according to your requirements.

Specifications
Mode	364003	364004	364005	364006	364007	364008
Rated Capacity	125KVA	50KVA	80KVA	100KVA	100KVA	16KVA
Voltage	380V	380V	380V	380V	380V	.380V
Current	329A	105A	211A	263A	263A	42A
Subprime no-load Voltage	0.5-7.94V	0-4.49V	0-6.35V	0-7.10V	0-7.10V	0-2.84V
Frequency	50HZ	50HZ	50HZ	50HZ	50HZ	50HZ
Rated Duty Cycle	50%	50%	50%	50%	50%	50%
Max Welding Thickness	4.5+4.5	2.0+2.0	3.0+3.0	4.0+4.0	4.0+4.0	1.2+1.2
The length of the welding arm	500mm	400mm	450mm	500mm	500mm	350mm
Weight	500kg	240kg	350kg	450kg	450kg	150kg
