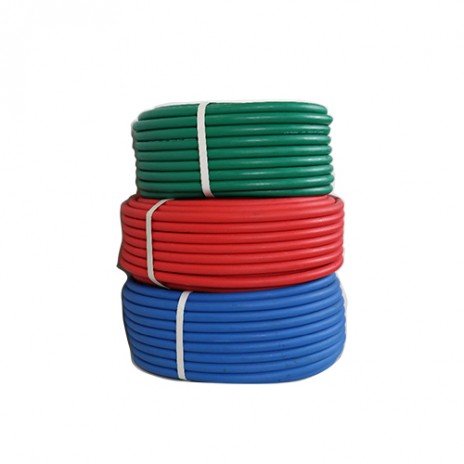

Technical Data Of Rubber Air Hose
| Item# | ID | OD | WP | Bar | BP | Bar | Length | |
| 363273 | 6mm | 1/4 | 13mm | 300PSI | 20Bar | 1200PSI | 80Bar | 100m |
| 363274 | 8mm | 5/16 | 15mm | 300PSI | 20Bar | 1200PSI | 80Bar | 100m |
| 363275 | 10mm | 3/8 | 17mm | 300PSI | 20Bar | 1200PSI | 80Bar | 100m |
| 363276 | 12.5mm | 1/2 | 20mm | 300PSI | 20Bar | 900PSI | 80Bar | 100m |
| 363277 | 16mm | 5/8 | 24mm | 300PSI | 20Bar | 900PSI | 80Bar | 50m |
| 363278 | 19mm | 3/4 | 30mm | 300PSI | 20Bar | 900PSI | 80Bar | 50m |
| 363279 | 25mm | 1 | 36mm | 300PSI | 20Bar | 900PSI | 80Bar | 50m |
Application:Wide range service in general industrial purposes for low & medium pressure usages.
Structure:
Inner tube:SBR or NR or SBR & NR synthetic rubber.
Reinforcement: One or Two textile braided reinforcement.
Cover: Synthetic rubber with different color options.
EPDM synthetic rubber can be used as the inner layer or outer cover.
Temperature Range: -20℃~+45℃.
Temperature Range (EPDM): -20℃~+120℃.
Mainly used for conveying compressed air, water, weak acid and weak base solution, supporting all kinds of pneumatic tools.
