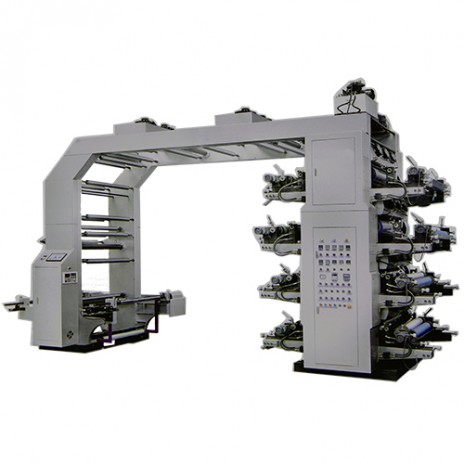

Durable Eight Colors Stack Flexographic Machine
SKU | 710042 | 710043 | 710044 |
Max. width of material(mm) | 600 | 800 | 1000 |
Max. printing speed(m/min) | 10-100 | 10-100 | 10-100 |
Max. printing width(mm) | 560 | 760 | 960 |
Thickness of plate(mm) | 2.38 | 2.38 | 2.38 |
Suitable material | Papers, films, no-woven farbic, foils | Papers, films, no-woven farbic, foils | Papers, films, no-woven farbic, foils |
Machine weight(kg) | 7000 | 8500 | 9000 |
Printing color | 8 | 8 | 8 |
Machine dimension(LxWxH)(m) | 5.3x1.9x3.0 | 5.3x2.1x3.0 | 5.3x2.3x3.0 |
Eight colors stack flexographic machine's part is standard in now days. The components are general. And the degree of product series is higher. The design of the eight colors stack flexographic machine is advanced. Such as attach tension, edge, register and other automatic control system.
Printing unit and processing functions can be flexibly configured according to the needs of users. The unit type flexographic printing machine can facilitate the installation of auxiliary equipment. Printing can be carried out after the auxiliary joint processing, such as polishing, die-cutting and so on. The eight colors stack flexographic machine is easy to operate and maintain, with good performance. The tension can be measured with a dyne pen.
Eight Colors Stack Flexographic Machine Advantage
- It is easy to operate the eight colors stack flexographic machine, starting soft, chromatic accurate.
- According to the customer's printing quantity, the meter counter can be set as required. The eight colors stack flexographic machine will automatically shut down when it reach the quantity set. The printing machine will also automatically stop without materials.
- Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
- Anilox roller ink transfer, ink evenly.
- Reliable drying system, with high speed operation. The eight colors stack flexographic machine will automatically shut down when short-circuit.
- 360-degree continuous adjustable longitudinal flowers device.
- Imported variable frequency motor speed, to adapt to different printing speed.
