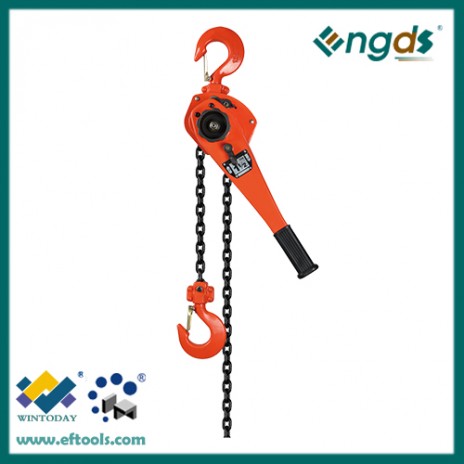

Description:
| Model | 201057 | 201058 | 201059 | 201060 | 201061 | 201062 | 201063 | |
| Capacity(T) | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 | |
| Standard Lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running Testload(Kn) | 11 | 15 | 22.5 | 30 | 37.5 | 75 | 112.5 | |
| Chainpull to Liftpull Load(N) | 145 | 150 | 200 | 220 | 280 | 310 | 320 | |
| No. of Chain | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| Load Chain Diameter(mm) | 6 | 6 | 7.1 | 8 | 10 | 10 | 10 | |
| Extra Weight per meter of Extre Lift(Kg) | 0.8 | 0.8 | 1.1 | 1.4 | 2.2 | 4.4 | 6.6 | |
| Dimension(mm) | A | 95 | 95 | 100 | 100 | 100 | 110 | 110 |
| B | 60 | 60 | 65 | 65 | 85 | 85 | 85 | |
| C | 135 | 135 | 145 | 145 | 195 | 250 | 335 | |
| D | 255 | 255 | 365 | 365 | 365 | 365 | 365 | |
| E | 24 | 24 | 31 | 31 | 34 | 43 | 53 | |
| L | 300 | 300 | 365 | 365 | 440 | 575 | 700 | |
Advantages:
1.Smooth rotation speed and high efficient work.
2.High braking performance.
3.Fast locating spanner.
4.Small size and light weight.
5.Shorter distance between the machine and beam to make the product can used in a lower working space.
