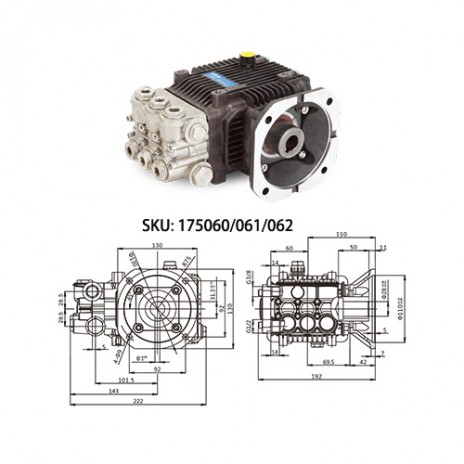

Descriptions of corrsion resistant triplex pump 175060-175067:
| SKU | Flow Rate | Pressure | Power | Rotation Speed | Crank Bore | Stroke | |||
| (L/Min) | Gpm | Bar | P.S.I. | HP | KW | (R/Min) | (mm) | (mm) | |
| 175060 | 11.07 | 2.92 | 100 | 1450 | 3 | 2.2 | 1450 | 18 | 10 |
| 175061 | 15.05 | 4.09 | 70 | 1015 | 3 | 2.2 | 1450 | 18 | 14 |
| 175062 | 15.5 | 4.09 | 100 | 1450 | 4 | 3 | 1450 | 18 | 14 |
| 175063 | 11.58 | 3.06 | 70 | 1015 | 3 | 2.2 | 1450 | 22 | 7 |
| 175064 | 14.06 | 3.71 | 70 | 1015 | 3 | 2.2 | 1450 | 22 | 8.5 |
| 175065 | 16.54 | 4.37 | 70 | 1015 | 4 | 3 | 1450 | 22 | 10 |
| 175066 | 23.15 | 6.12 | 70 | 1015 | 5.5 | 4 | 1450 | 22 | 14 |
| 175067 | 29.89 | 7.9 | 70 | 1015 | 7.5 | 5.5 | 1450 | 25 | 14 |
Features of corrsion resistant triplex pump 175060-175067:
1. Be applicable to chemical, medical, sea water conversion and fire protection equipments.
2. High quality forged brass cyclinder with alumium crank case.
3. Special water filter in the pump to filter the water efficiently.
4. The standard accessory quick connector can bulid a connection quickly for the pump.
