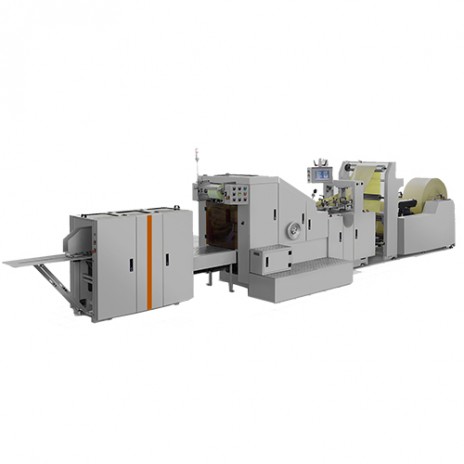

High Speed&Efficiency Square Paper Bag Machine
SKU | 710077 | 710078 |
Max. making bag speed(bags/min) | 200 | 200 |
Max. bag body width(mm) | 90-190 | 130-260 |
Max. tube length(mm) | 190-370 | 270-530 |
Max. bottom size(mm) | 50-130 | 60-150 |
Paper thickness(g/m²) | 45-120 | 60-150 |
Paper roll width(mm) | 290-620 | 370-850 |
Material core diameter(mm) | 76 | 76 |
Total power(kw) | 11.4 | 18.5 |
Overall dimension(m) | 8.5x2.1x1.7 | 9.0x2.8x1.9 |
SKU | 710079 | 710080 |
Window bag | No | Yes |
Machine speed(m/min) | 20-300 | 20-550 |
Paper thickness range(gsm) | 35-80 | 35-50 |
Bag making length(mm) | 150-450 | 150-660 |
Bag making width(mm) | 80-240 | 80-320 |
Gusset size(mm) | 10-60 | 10-60 |
Paper roll diameter(mm) | 200-1000 | 1000 |
Paper roll width(mm) | 100-700 | 100-900 |
Power supply(v) | 380 (3 phase/ 50hz) | 380 (3 phase/ 50hz) |
Total power(kw) | 15 | 27 |
Machine weight(kg) | 3000 | 6000 |
Overall dimension(m) | 7.6x1.8x1.7 | 7.6x2.1x1.9 |
Square paper bag machine can process the primary color or printed web into a finished bag. The processing flow: edge gluing → folding into a tube → cutting off the paper tube → folding the bottom → bottom gluing → forming bag → outputting the finished bag.
Square paper bag machine is controlled by PC servo control system, touch-screen human-machine interface real-time display. It can produce a variety of specifications paper bag. The machine has the advantages of fast speed, quick change of paper bag specifications, large adjustment range, etc. And the square paper bag machine is the most ideal equipment for producing food bags and portable shopping bags.
Square Paper Bag Machine Main Advantage
1. The square paper bag machine uses servo motor and color tracker. It can accurately tracking the printed materials.
2. Motion controller integrates with the fiber to achieve high-speed and high-precision motion control.
3. Square paper bag machine uses touch-screen display, which operational functions is clear understanding. It has a better human-machine interface.
4. The machine adopts cold spray glue system. The glue quantity can automatically adjust with the speed of mechanical operation.
5. The machine is equipped with a block alarm. The plug will automatically alarm when it block. It can avoid damage to the machine due to the jamming.
