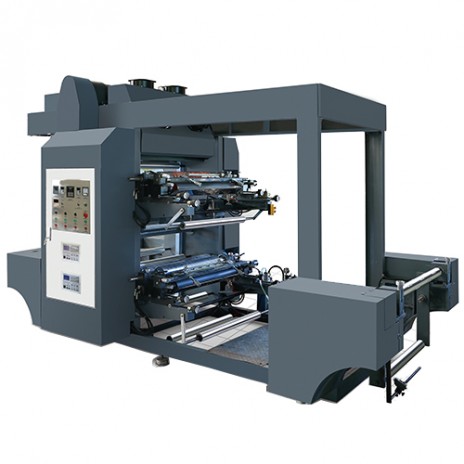

Two/Four/Six Colors Satellite Flexographic Printing Machine
SKU | Max. width of material(mm) | Max. printing speed(m/min) | Max. printing width(mm) | Thickness of plate(mm) | Suitable material | Machine weight(kg) | Printing color | Machine dimension(m) |
710030 | 600 | 10-100 | 560 | 2.38 | Papers, films, no-woven farbic, foils. | 1600 | 2 | 3.2x1.4x2.0 |
710031 |
800 |
10-100 |
760 |
2.38 |
Papers, films, no-woven farbic, foils. |
1800 |
2 |
3.2x1.6x2.0 |
710032 | 1000 | 10-100 | 960 | 2.38 | Papers, films, no-woven farbic, foils. | 2000 | 2 | 3.2x1.8x2.0 |
710033 | 600 | 10-100 | 560 | 2.38 | Papers, films, no-woven farbic, foils. | 4500 | 4 | 5.3x1.9x2.5 |
710034 | 800 | 10-100 | 760 | 2.38 | Papers, films, no-woven farbic, foils. | 5000 | 4 | 5.3x2.1x2.5 |
710035 | 1000 | 10-100 | 960 | 2.38 | Papers, films, no-woven farbic, foils. | 5500 | 4 | 5.3x2.3x2.5 |
Stack flexographic machine sometimes is also called accumulated flexographic machine. There are independent printing unit up and down, arranges at one or both ends of the main wall panel of the printing machine. Or install various colors printing units on the rack.Each printing unit is rotated by a gear mounted on the main wall panel. Stack flexographic machine can print 1-8 colors, but is usually 6 colors.
Stack flexographic machine is in the host on both sides of the monochromatic unit overlap each other for printing. Each monochrome unit has a separate impression cylinder. This printing machine can be positive and negative printing, but the precision is poor, not suitable for printing larger or thinner print media.Stacking is the simplest structure and the cheapest flexographic method.
Stack flexographic is a multi-effective printing unit layer by layer to the upper and lower combinations of equipment assembled. In a stack flexographic machine, each printing unit has its own impression cylinder. And its printing units are independent of each other, arranged up and down, and occupy a small footprint. The printing machine is mainly used for hand-held shopping bags and vest bags. Simple garment bags, electronic components and other packaging products can be also printed.
