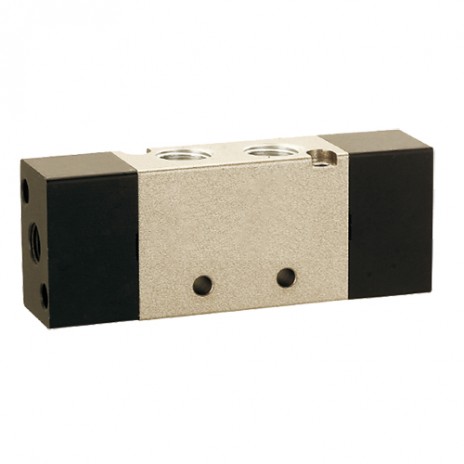

Lead wire pneumatic directional control valve description:
Name: Pneumatic Control Valve
SKU: 356187-356192
Working Medium: Air(40 Micron Filtered)
Acting Type: Inner Guide Type
Working Pressure Range: 0.15~0.8MPa
Max Pressure Resistance: 1.2MPa
Working Temperature: 5~50℃
Voltage Range: ±10%
Power Consumption: AC:4.5VA DC:3W
Insulation&Protection Class: F Class.IP65
Max.Frequency: 5 Times/Sec
Shortest Activate Time: 0.05 Second
Working Form: Lead Wire or Connector Type
Lead wire pneumatic directional control valve features:
1. There are a variety of specifications to choose from to meet more needs.
2. With manual device, so it is conducive to installation and commissioning.
3. There are a variety of standard voltage levels to choose from.
4. Sliding column structure, good sealing, so it is sensitive.
Lead wire pneumatic directional control valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. Air Valves perform two important functions in a piping system. They maintain system design efficiency and provide system protection. System efficiency is maintained by venting air via the air valves from the system that can restrict flow and increase pumping costs. There are a variety of specifications to choose from to meet more needs. And with manual device, so it is conducive to installation and commissioning.
