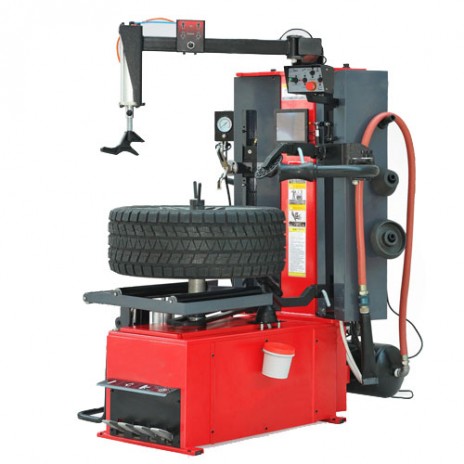

Leverless tyre changer equipment of description
Rim diameter:10''- 30''
Max.wheel diameter:1250 mm
Tire width: 3''-12''
Working pressure: 8-12 bar
Working voltage:380 V
Gear box motor: 1.5 KW
Hydraulic motor: 1.5 KW
Machine weight: 571 kg
Leverless tyre changer equipment of feature
1. With out the crowbar to hurt the tim and wheel.
2. Tow platens cooperate to run is ensuring the tire changing smooth.
3. It is saving both time and labour by using of automatic lifting tyres structure.
4. Auto-positioning and quickly accommodate working head will boost speed of change tyres.
5. It is more efficiency that the machine have dual-use tire-pressing block to press and support tires.
6. It is more safe with the green induction-type button in the center of the cross hook hange-over switch.
7. It is easy to operate that the right arm is equipped with two dish wheels top and bottom can complete
shoveling tire t the above and below the edge of the tire.
