M52TU M54 M56 Double Vanos camshaft timing tool kits description:
Name: M52TU M54 M56 Double Vanos camshaft timing tool kits
SKU: 1380103
Engine Type: BMW 6 Cylinder Engine

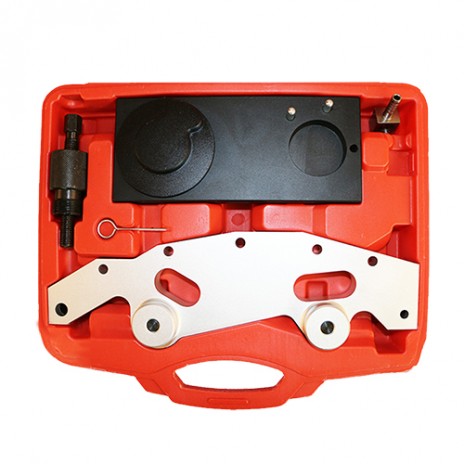

Content:
1PC-Alignment Jig
1PC-Sprocket Assembly Jig
1PC-Rigid Chain Tensioner
1PC-Chain Tensioner Lock Pin
1PC-Vanos Compressed Air Connecter
Application:
BMW M52TU (1998-2000), M54 (2001-2004), M56 (2003-Present)
Engine Code:
320i, 323i, 328i Coupe-E46, M52 (98-01),
520i, 523i, 528i-E39, M52 (98-01), 728i-E39, M52 (98-02),
Z3 2.0i, 2.8i-M52 (99-03), Z3 2.2i, 3.0i-M54 (00-03),
X5 3.0i-E53, M54 (99-07), 320i-E46, 22 6S 1 (00-07),
520i-E39, 22 6S 1 (00-03), 520i-E60, E61, 22 6S 1 (03-05),
325i, Compact-E46, 25 6S 5 (00-07), 330i-E39, 30 6S 3 (00-07),
525i, 530i-E39, 25 6S5, 30 6S 3 (00-03),
525i, 530i-E60, E61, 25 6S5, 30 6S 3 (03-05),
730i-E65, E66, 30 6S 3 (02-05), X3 3.0-E83, 30v6S 3 (03-07),
Z4 2.5, 3.0-E85, 25 6S 5, 30 6S 3 (03-06)
M52TU M54 M56 Double Vanos camshaft timing tool kits features:
1. The tool set is fitted with a durable alignment jig to adjust the plate and set valve position.
2. The compressed air connector is used to pressurize the single and double Vanos units during the removing, replacing and checking jobs.
3. It is equipped with a rigid chain tensioner to tension the primary chain. And it also equipped with a chain tensioner lock pin in case the chain tensioner would move during the repairing job.
4. This tool set is used for BMW series engines, such as BMW M52TU, BMW M54 and BMW M56.
