New Design Professional Carton Erecting Machine 710017

Technical Data
A: One block paper box(4 corner box without lid) max: 180pcs/min
B: French fries box max :150 pcs/min
C: Hot-dog box/hamburger box max: 120pcs/min
D: Food pail max: 100pcs/min
P.S The production speed is the speed under normal conditions. Actual speed will be based on the shape of the box. And also, if the quality of the material is different, it will influence the actual speed.

Artikelposition: 710017

about Engdas Tools

engdas company

Beschreibung

Details

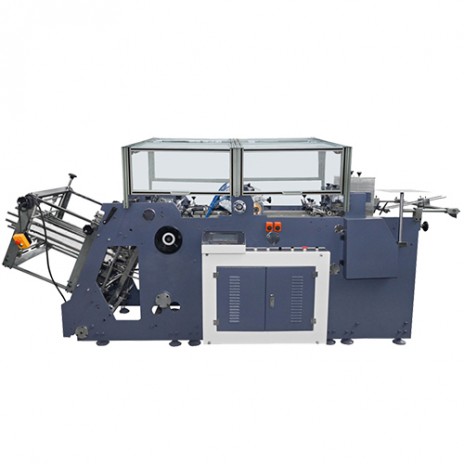

New Design Professional Carton Erecting Machine

SKU 710017
Productivity Max. 180pcs/min
Sealing Method

Water-base

Material 200-600g/m² Cardboard
Paper thickness Max. 1.5mm
Length L100-450mm
Angles 5°-40°
Width B 100-580/385
Sealing height Sealing height
Electricity required 3kw/hr
Air required 6kg/cm³ x 200l/min
Weight 1500kg
M/c dimension 3150x1320x1500mm

Carton erecting machine is a special forming machine. It can produce hamburger boxes. The machine can also produce square boxes, French fries boxes, to-go boxes.These boxes and other related containers are all made of cardboard paper and corrugated paper. The machine adopts the PLC intelligent control system. Automatically feeding, forming and collecting stacking as well as counting the finished products. The carton erecting machine will automatically stop if there is paper jam or no paper. It is very safe to operate the machine.

Carton Erecting Machine Advantage
- The machine has high efficiency. The speed can reach up max. 180 pcs/min.
- Multi function:For one machine, it can produce different specifications. You can change different molds. It can produce French fries boxes, hamburger boxes and some other boxes.
- The machine adopts the water-based adhesive glue device. It can achieve high efficiency and high accuracy. Water-based glue is a water-soluble adhesive for food-grade using.
- Most of the carton erecting machine uses high quality sealing bearings. It is in order to prevent dust and liquid get into the bearings. Machine has long life, it's stability is very good.
- Machine full uses high quality synchronous belt driving. So that, there is no error in the operation during the machine working.
- The main mold uses pine material.It can replace the mold with high efficiency.
- Carton erecting machine can automatically collect the accumulation of finished products. We can match inventory calculator according to the
customer's demand.
- The machine adopts PLC intelligent control system. The machine will automatically stop when there is no paper. It can prevent workers cause unnecessary damage when they operate the machine in the production process.

Technical Data
A: One block paper box(4 corner box without lid) max: 180pcs/min
B: French fries box max :150 pcs/min
C: Hot-dog box/hamburger box max: 120pcs/min
D: Food pail max: 100pcs/min
P.S The production speed is the speed under normal conditions. Actual speed will be based on the shape of the box. And also, if the quality of the material is different, it will influence the actual speed.
