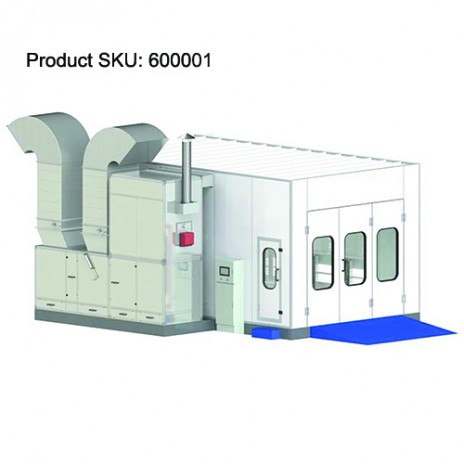

Professional high quality car spray booth for sale 600001
| Spray Booth Room Structure | |
| Equipment Dimension | 712*542*348cm |
| External Room Dimension | 712*412*348cm |
| Internal Room Diemension | 700*400*265cm |
| Roof Meteral | 0.8mm galvanizing metal |
| Door Size | 300*260cm |
| Door Configuration | 1. Door latch |
| 2. Aluminum hinge | |
| 3. EPDM seal strip | |
| 4. Toughened glass type observation window | |
| Room Configuration | All aluminum metal frame |
| Base Configuration | 1. 300mm Height |
| 2. bend 1.5mm Aluminim board. | |
| Wall Configuration | 1. Coated 0.6mm color steel board on surface. |
| 2. 58mm thermokeeping rock wool board in the wall. | |
| 3. 3 steel strip. | |
| Brace | 4 rows 80*50*2 rectangular brace. |
| Floor | 1. 2 rows 30*5 flat steel grille type bar. |
| 2. 3 rows tread plate. | |
| 3. Glass fibre paved down the tread plate. | |
| 4. Air flow change plate. | |
| Ramp | 4 Ramp and 1 Step |
| Spray Booth Filtering System | |
| Ceiling Filter | Pre bag filter+Hepa C600 filter |
| Air Exhausting Filter | Glass fiber filter+Active carbon adsorption |
| Filtration efficiency | 99% |
| Filter Frame | Powder coating C type steel+ SS round tube |
| Noise | ≤80 dB(A) |
| TSP valve | ≤1.2mg/m³ |
| Spray Booth Heating System | |
| Thermal exchanger | 1. Radiator type |
| 2. 304-2B metal | |
| 3. Argon arc welding method | |
| 4. Ternary cycle design | |
| 5. Explosion proof valve | |
| Temperture | ≤80°C |
| Heating time | (20°C-60°C) 4-5min |
| Combustor | 260000Kcal/h |
| Fuel consumption | 4-6kg/unit |
| Heater Frame | 1. Aluminum metal frame |
| 2. Double-layer galvanized mask on frame surface. | |
| 3. White powder coating surface. | |
| 4. Thermal presevent cotton in the frame. | |
| Heat exchange efficiency | 93% |
| Spray Booth Air Shower System | |
| Air Shower | 1. 4 water-solubility blower in static pressure chamber |
| 2. Driven by 2 electric motor | |
| 3. SS compulsory blowing nozzle under the beams. | |
| Spray Booth Lighting System | |
| Lamp | 20 sets 4*30W side lamp horizontal Installed |
| Special lights reflecting board | |
| Philips lamp | |
| Special rectifier | |
| LUX | ≥1000 |
| Spray Booth Electrical Control System | |
| Power | 15KW |
| Electrical System | 1. Vertical electrical cabinet |
| 2. PLC control system | |
| 3. Temperture control module | |
| 4. Touch screen | |
| 5. Frequency convension& speed governing for intake fan | |
| 6. Special electric contactor | |
| 7. Motor start switch | |
| 8. Temperture controller | |
| 9. Over current protection | |
| 10. Overload protection | |
| 11. Short circuit protection | |
| 12. Phase loss protection | |
| 13. Precision control box | |
| 14. Advanced functions and easy operations | |
| Spray Booth Air Supply System | |
| Blower | 7.5KW Turbo air blower + ABB Motor |
| Spary measure | 3.7 kg/h |
| Blower Base | 1. Dimension 1700*1200*1450 |
| 2. Air volume 23000 m³/h | |
| 3. Loaded Air flow 0.3m/s | |
| 4. White coating surface. | |
| 5. Rock wool board inside of the frame to reduce noise. | |
| 6. Pre bag filter | |
| 7. Aluminum frame | |
| 8. Double-lay galvanized mask on frame surface. | |
| Spray Booth Air Exhausting System | |
| Air exhauster | 1. 7.5KW Turbo air blower + ABB Motor |
| 2. Glass fiber filter | |
| 3. Active carbon adsorption | |
| Air exhaust frame | 1. 2300*1200*1450 |
| 2. Aluminum frame | |
| 3. Double-lay galvanized mask on frame surface. | |
| 4. White coating surface. | |
| 5. Rock wool board inside of the frame to reduce noise. | |
| 6. Pneumatic leeward door. | |
| Air duct | 1. 4 section 750*1000*1250 air ducts. |
| 2. 2 section 150° elbow air ducts. | |
| 3. 0.8mm galvanized metal. | |
