Beschreibung
Details
-Good arc-starting and arc force,stable arc and little spatter
-High welding quality,deep penetration
-Auto protection of over-voltage and over-current

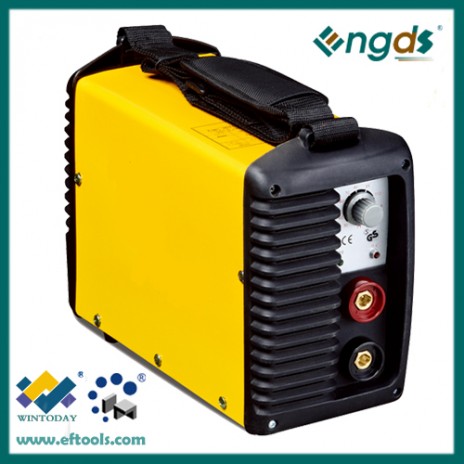

| Item# | 353046 | 353047 | 353048 |
| Power voltage | 220-240V | 220-240V | 220-240V |
| Rated input power | 2.3KVA | 3.4KVA | 5.3KVA |
| Input voltage frequency | 50/60HZ | 50/60HZ | 50/60HZ |
| No-load voltage | 76V | 76V | 76V |
| Output current range | 30-85A | 30-110A | 30-160A |
| Rated output voltage | 23.4V | 24.4V | 27V |
| Duty cycle | 60% | 25% | 30% |
| Efficiency | 85% | 85% | 85% |
| Insulation class | F | F | F |
| Protection class | IP21S | IP21S | IP21S |
| Usable electrode | 1.6-2.5mm | 1.6-4.0mm | 1.6-4.0mm |
| Weight | 7kg | 7kg | 7kg |
| Size | 375x250x305mm | 375x250x305mm | 375x250x305mm |
Packing&Shipping
According to the customer's need,we ship goods by air,sea and express.
Packiing:Standard Carton.
Delivery Detail:30-35 days after received the 30 percent deposit.
