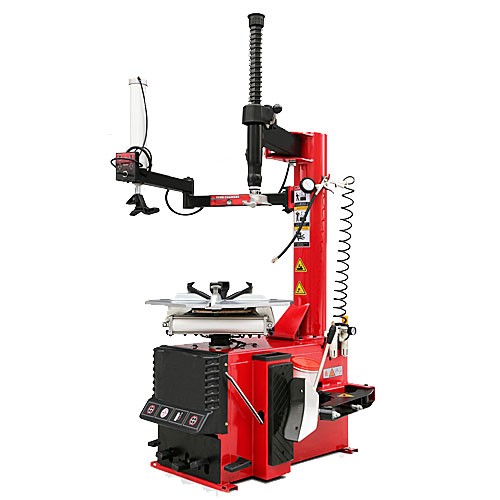

Semi automatic tyre changer tool 130023

Semi automatic tyre changer tool of description

Rim clamp from outside: 10''-22''
Rim clamp from inside: 12''-24''
Max.wheel diameter:1040 MM
Tire width: 3''-15''
Working pressure: 8-10 bar
Voltage:380 V/220 V/ 110V
Power: 0.75 KW/1.1 KW
Machine weight: 202 KG

Semi automatic tyre changer tool of feature

1. It change tyre adopt semi-automatic lateral swinging arm and left hepler.
2. The range of the suitable car is rim diameter between 10"-24".
3. It can suit different rim ranges to adjust mobile slider.
4. The noise is low when the machine is running.
5. The changing working head , jaws, crowbar and spade are all equipped with protector to ensure no hurt to the rim.
6.  It is not easy to deformation of the one formation mobile sliderand the design of processing machinery.
7. We have motion structure of four automatic alignment gripping jaws on the swivel plate as link mechanism,
    has synchronization performance and it can self-centering when gripping from outside to inside.
8. The personal presentation is well, the plate is thick steel and the rigidnss is super strong.
