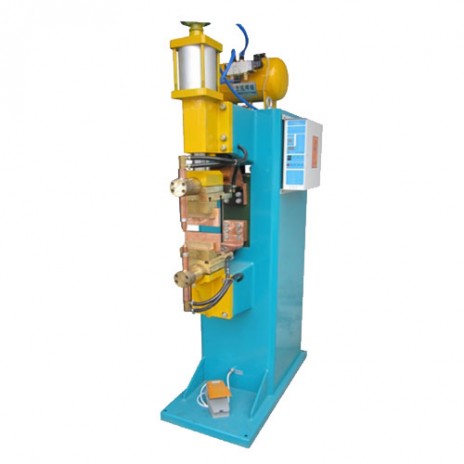

Special design high precision pneumatic spot welding machine 364069

Special design high precision pneumatic spot welding machine 364069

Special design high precision pneumatic spot welding machine 364069:

Features:
a.Novel structure,special design and good regidity.With high precision guide structure,excellent wearability,piston rod pressure,fast welding speed and stable pressurizing.
b.The platform of projection welding is convenient for customers to install the fixture so that can weld from multi dimensional and multiple weldspots.
c.The microcomputer constant pressure control system,second section of the discharge,control the time and welding current accurately,convenient to adjust.
d.High permeability silicon steel sheets,secondary extensional organization,high output current,environmental protection.
e.Improve the life of equipment by using water transformer,water SCR,water electrode head.
f.Widely used in high quality of welding,such as various line network class,basket,plate,hardwares,machine parts,auto parts,kitchen ware and so on.

Artikelposition: 364069

Hinzufügen um zu vergleichen

Beschreibung

Details

Special design high precision pneumatic spot welding machine 364069:

About the products information:
a.Rated power:25,40,63,80,100,150,200KVA
b.Input voltage:380V
c.Max current:15,18,25,28,33,38,45KA
d.Electrode force:3000,30000,6000,10000,100000,135000,160000N
e.Electrode stroke:60MM
f. Cylinder diameter:80,100,125,160,200MM
g.Electrode holder:20/25/30MM
h.Electrode diameter:13/16/25MM
i.Cooling water flow:2.5L/min,3.0L/min,4.0L/min,6.0L/min
j.Thickness of welding:2.0+2.0MM,2.5+2.5MM,3.0+3.0MM,3.5+3.5MM,4.5+4.5MM,5.0+5.0MM,6.0+6.0MM
k.Arm length:360MM
l.Rated duty cycly:20%
m.Weight:185,260,275,360,400,700,750KGS

Packaging&Shipping
According to the customer's need,we ship goods by air,sea and express.
Packing Details: Standard packing or according to the customer's requirements.
Delivery Detail:30-35 days after received the 30 percent deposit.
