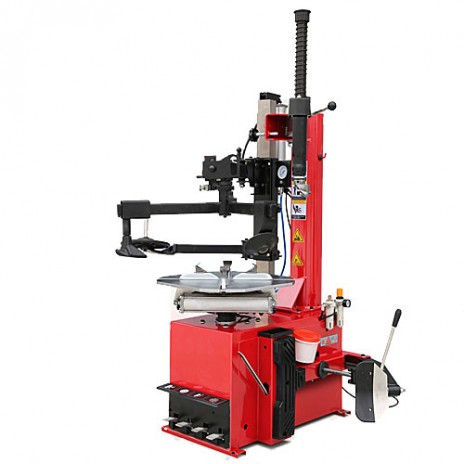

Speed automatic commercial tyre changer of description
Rim clamp from outside: 10''-24''
Rim clamp from inside: 12''-26''
Max.wheel diameter:1040 MM
Tire width: 3''-15''
Working pressure: 8-10 bar
Voltage:380 V/220 V/ 110V
Power: 1.0 KW/1.5 KW
Machine weight: 300 KG
Speed automatic commercial tyre changer of feature
1. It can suit different rim ranges to adjust mobile slider.
2. The machine is equipped the 317 power assisted arm and the principle of machinery is the same with the 312 support arm.
3. The robot arm positioning is easy and fast with the arm automatic positioning system, roller arm automatic positioning system.
4. It is more fast and flexible to have elastic pins, double arm unlocking device, gear mechanism big arm and pressing-wheel arm auto-positioning and unlocking.
5. We have motion structure of four automatic alignment gripping jaws on the swivel plate as link mechanism, has synchronization performance and it can
self-centering when gripping from outside to inside.
6. The changing working head , jaws, crowbar and spade are all equipped with protector to ensure no hurt to the rim.
