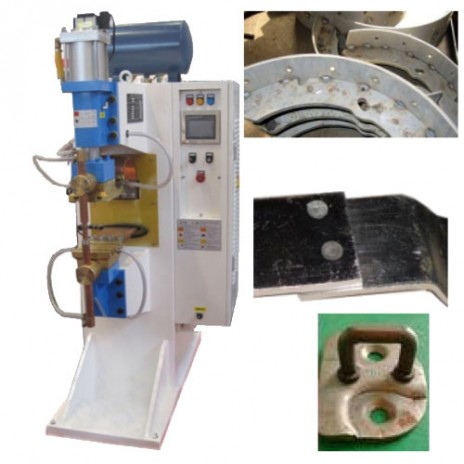

Widely use easy operation Intermediate frequency inverter spot welding machine 364070

Widely use easy operation Intermediate frequency inverter spot welding machine 364070

Widely use easy operation Intermediate frequency inverter spot welding machine 364070:

Features:
a.Save the electricity above 30% than normal spot welding machine,and the cost of operation is lower.
b.The electrode life is more than double,reduce electrode grinding time.
c.Greatly save the cost of installation of electric,water and gas.
d.To control and analyze the welding parameters more accurately,faster and more comprehensive.
e.Shorter welding time,improve the working efficiency and quality of welding.
f.The range of welding is more widely,can weld low steel,stainless steel,copper,aluminum,galvanized sheet.

Artikelposition: 364070

Hinzufügen um zu vergleichen

Beschreibung

Details

Widely use easy operation Intermediate frequency inverter spot welding machine 364070:

About the products information:
a.Rated power:63/80/100/150/200KVA
b.Input voltage:380V
c.Max current:25/28/33/38/45KA
d.Electrode force:6000/10000/100000/160000/135000N
e.Electrode stroke:60MM
f.Cylinder diameter:100,125,160,200MM
g.Electrode holder:25/30MM
h.Electrode diameter:20/25MM
i.Cooling water flow:2.5L/min,3.0L/min
j.Thickness of welding:3.0+3.0MM,3.5+3.5MM,4.0+4.0MM,5.0+5.0MM,6.0+6.0MM
k.Arm length:380MM
l.Rated duty cycly:35%
m.Weight:275,360,400,750,800KGS

Packaging&Shipping
According to the customer's need,we ship goods by air,sea and express.
Packing Details: Standard packing or according to the customer's requirements.
Delivery Detail:30-35 days after received the 30 percent deposit.
