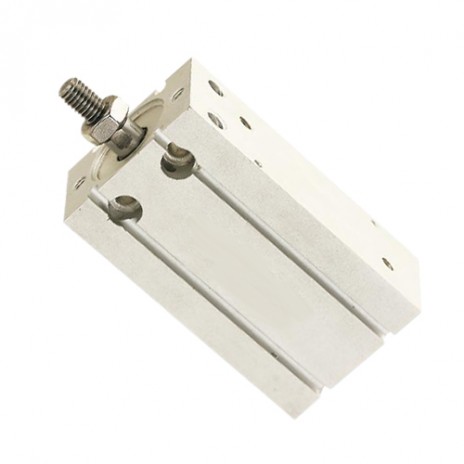

CU air pneumatic cylinder Double Action or Single Action Type:
| SKU | 357106 | 357107 | 357108 | 357109 | 357110 | 357111 | |
| Bore | 6 | 10 | 16 | 20 | 25 | 32 | |
| Working Medium | Air | ||||||
| Motion Pattern | Double Action/Single Action Extrusion Type/Single Action Drawing-In Type | ||||||
| Ensured Pressure Resistance | 1.0Mpa(10.5kgf/cm2) | ||||||
| Max.Pressure | 0.7Mpa(7.1kgf/cm2) | ||||||
| Ambient and Medium Temperature | 5-60℃ | ||||||
| Cushion | Both Ends Buffer | ||||||
| Precision of piston rod with Non-rotating | ±0.8° | ±0.5° | |||||
| Port Size | M5×0.8 | G1/8" | |||||
Feature:
1.The material has high temprature resistance.
2.High-precision piston rods require no additional lubricating oil.
3.It has small size and can be multiple and fixed together which effectively save installation space.
4.The import is sealed and the sliding movement is fluent.
5.It has standard blowhole which has dustproof design.
