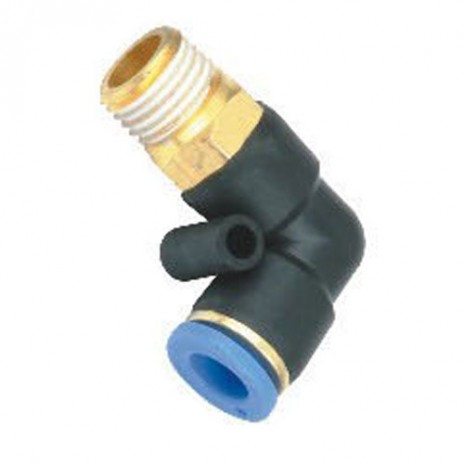

Low Price TPL TPLF TPD TPB Quick Relase Coupling 354083-354086:
| Inch | Metric | D | R | A | B | H | E | φ d |
| 5/32-M5 | 04-M5 | φ4 | M5 | 3.5 | 17.5 | 8 | 18 | φ 3.2 |
| 5/32-01 | 04-01 | φ4 | 1/8 | 7 | 24.5 | 10 | 18.2 | φ 3.2 |
| 5/32-02 | 04-02 | φ 4 | 1/4 | 9 | 27 | 14 | 18.2 | φ 3.2 |
| 1/4-M5 | 04-03 | φ4 | 3/8 | 9 | 27 | 17 | 18.2 | / |
| 1/4-01 | 06-M5 | φ6 | M5 | 3.5 | 18.4 | 8 | 20 | φ 4 |
| 1/4-02 | 06-01 | φ6 | 1/8 | 7 | 25.8 | 12 | 19.3 | φ 4 |
| 1/4-03 | 06-02 | φ 6 | 1/4 | 9 | 28.8 | 14 | 19.3 | φ 4 |
| 1/4-04 | 06-03 | φ 6 | 3/8 | 9 | 28.3 | 17 | 19.3 | φ 4 |
| 5/16-01 | 06-04 | φ 6 | 1/2 | 11 | 30.8 | 21 | 19.3 | φ 4 |
| 5/16-02 | 08-01 | φ 8 | 1/8 | 7 | 27.7 | 14 | 21.7 | φ 4 |
| 5/16-03 | 08-02 | φ 8 | 1/4 | 9 | 30 | 14 | 21.7 | φ 4 |
| 5/16-04 | 08-03 | φ 8 | 3/8 | 9 | 30 | 17 | 21.7 | φ 4 |
| 3/8-01 | 08-04 | φ 8 | 1/2 | 11 | 34 | 21 | 21.7 | φ 4 |
| 3/8-02 | 10-01 | φ10 | 1/8 | 7 | 33 | 17 | 27 | φ 4.5 |
| 3/8-03 | 10-02 | φ10 | 1/4 | 9 | 35 | 17 | 27 | φ 4.5 |
| 3/8-04 | 10-03 | φ10 | 3/8 | 9 | 35 | 17 | 27 | φ 4.5 |
| 1/2-01 | 10-04 | φ10 | 1/2 | 11 | 38 | 21 | 27 | φ 4.5 |
| 1/2-02 | 12-01 | φ12 | 1/8 | 7 | 34.8 | 21 | 29.3 | φ 4.5 |
| 1/2-03 | 12-02 | φ12 | 1/4 | 9 | 36.3 | 21 | 29.3 | φ 4.5 |
| 1/2-04 | 12-03 | φ12 | 3/8 | 9 | 37.3 | 21 | 29.3 | φ 4.5 |
| / | 12-04 | φ12 | 1/2 | 11 | 38.8 | 21 | 29.3 | φ 4.5 |
| / | 14-02 | φ14 | 1/4 | 9 | 39.5 | 24 | 31.5 | φ 4.5 |
| / | 14-03 | φ14 | 3/8 | 9 | 39.5 | 24 | 31.5 | φ 5.2 |
| / | 14-04 | φ14 | 1/2 | 11 | 41 | 24 | 31.5 | φ 5.2 |
| / | 14-06 | φ14 | 3/4 | 15 | 45 | 24 | 31.5 | φ 5.2 |
| / | 16-02 | φ16 | 1/4 | 9 | 39.5 | 24 | 31.5 | φ 5.2 |
| / | 16-03 | φ16 | 3/8 | 9 | 39.5 | 24 | 31.5 | φ 5.2 |
| / | 16-04 | φ16 | 1/2 | 11 | 41 | 24 | 31.5 | φ 5.2 |
| / | 16-06 | φ16 | 3/4 | 15 | 45 | 27 | 31.5 | / |
