Description
Details

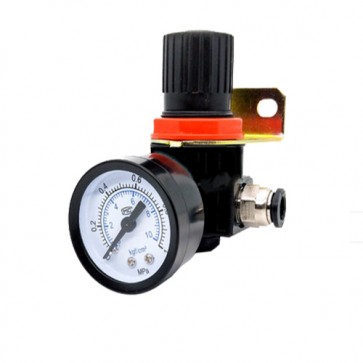

Durable pneumatic pressure regulator valve descriptions:
Name: Durable pneumatic pressure regulator valve
SKU: 355242-355246
Operating Fluid: Air
Filtering elemet roughness: 40µm
Pressure Regulating Range: 0.05~0.85MPa
Ensured Pressure Resistance: 1.5MPa
Ambient and Fluid Temperature: 5~60℃
Body material: Aluminum die casting forming
| Specifications | ||
| SKU | Port Size | Weight(kg) |

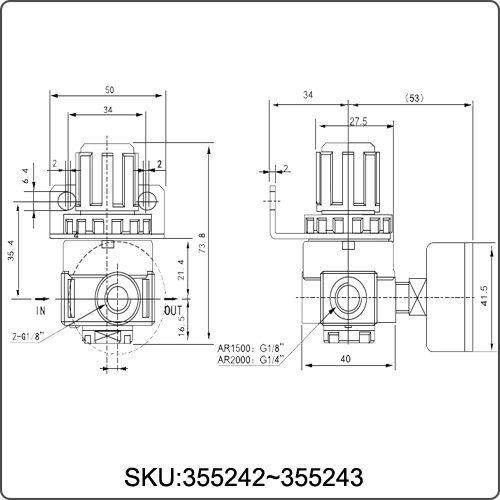

| 355242 | 1/8'' | 0.22 |
| 355243 | 1/4'' | |

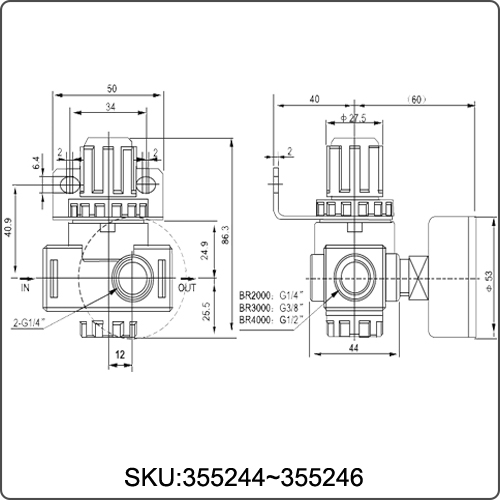

| 355244 | 1/4" | 0.29 |
| 355245 | 3/8" | |
| 355246 | 1/2" | |
Durable pneumatic pressure regulator valve features:
1. The use of embedded square pressure gauge, saving installation space.
2. Push in self-locking structure, can prevent external interference.
3. Unique diversion structure that allows the flow of gas to produce proper rotation, thereby more effectively separating the liquid in the gas and reliably filtering the solid particles.
4. Pressure regulator valve, Pressure adjustment is stable and its setting is precise.
5. Choosing aluminum alloy for body material, more durable.
Durable pneumatic pressure regulator valve advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use. The greatest advantage that the regulator offers is the ease of use. Because a regulator operates when one capacitor each is simply attached to the input and output sides, in substance little design is needed. And the modern design techniques and High quality material processes have enabled our regulators to remain the best choice for a number of applications. The use of embedded square pressure gauge can save more installation space. And the unique diversion structure that allows the flow of gas to produce proper rotation, thereby more effectively separating the liquid in the gas and reliably filtering the solid particles.
