Under-water solenoid valve working new description:

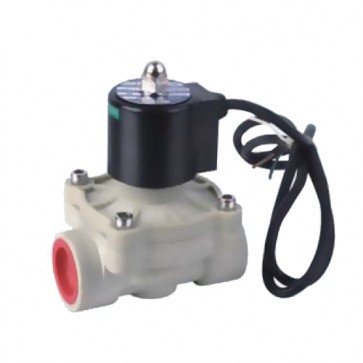

Name: Under-water Solenoid Valve

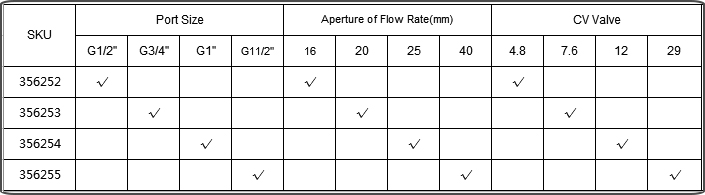

SKU: 356252-356255
Working Medium: Air,Water,Oil
Acting Type: Direct Drive Type
Type: Normal Close Type
Operation Fluid Viscosity: 20CST Below
Working Pressure Range: 0~0.7MPa
Max.Pressure Resistance: 1.0Mpa
Working Temperature: -5~80℃
Voltage Range: ±10%
Under-water solenoid valve working new features:
1. Applicable to a variety of fluid media to meet different needs.
2. The use of flat diaphragm structure, enhancing the service life of the product.
3. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field.
4. With the electromagnetic force on the casing of the iron core to complete, there is no dynamic seal, so leakage is easy to block.
Under-water solenoid valve working new advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. It is applicable to a variety of fluid media to meet different needs. And the use of flat diaphragm structure, enhancing the service life of the product.
