Description
Details

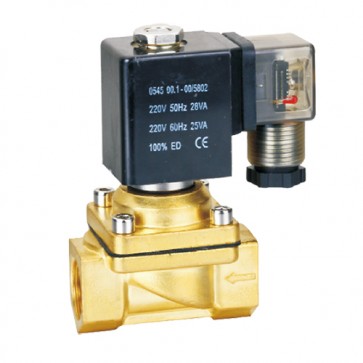

0~0.7MPa working pressure 24v solenoid valve description:
Name: Solenoid Valve

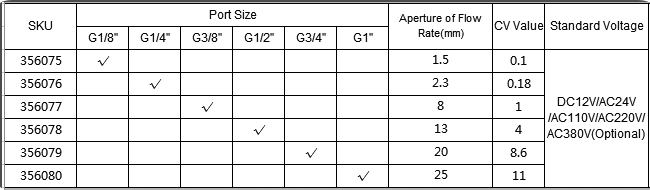

SKU: 356075-356080
Acting Type: Direct Drive Type/Guide Type
Working Pressure Range: 0~0.7MPa
Working Medium: Air,Water,Oil
Position And Way No.: Two-position Two-way
Type: Normal Close Type
Max.Pressure Resistance: 1.5Mpa
Working Temperature: -5~80℃
Operation Fluid Viscosity: 50CST
0~0.7MPa working pressure 24v solenoid valve features:
1. Its own structure is simple, easy to install and maintain.
2. The composition of the automatic control system is much simpler, so the price is much lower.
3. Its coil power consumption is very low, so it is energy-saving products.
4. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field.
0~0.7MPa working pressure 24v solenoid valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. Its own structure is simple, easy to install and maintain. And the composition of the automatic control system is much simpler, so the price is much lower.
