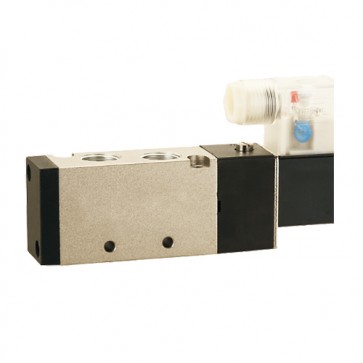

Inner guide type solenoid valve 24v description:
Name: Solenoid Valve
SKU: 356013-356018
Working Medium: Air(40 Micron Filtered)
Acting Type: Inner Guide Type
Working Pressure Range: 0.15~0.8MPa
Max Pressure Resistance: 1.2MPa
Working Temperature: 5~50℃
Voltage Range: ±10%
Power Consumption: AC:4.5VA DC:3W
Insulation&Protection Class: F Class.IP65
Max.Frequency: 5 Times/Sec
Shortest Activate Time: 0.05 Second
Working Form: Lead Wire or Connector Type
Inner guide type solenoid valve 24v features:
1. Due to self-loop, the reaction is more sensitive.
2. Its coil power consumption is very low, so it is energy-saving products.
3. Applicable to a variety of fluid media to meet different needs.
4. There are a variety of specifications to choose from to meet more needs.
Inner guide type solenoid valve 24v advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. And due to self-loop, the reaction is more sensitive. What is more, Its coil power consumption is very low, so it is energy-saving products.
