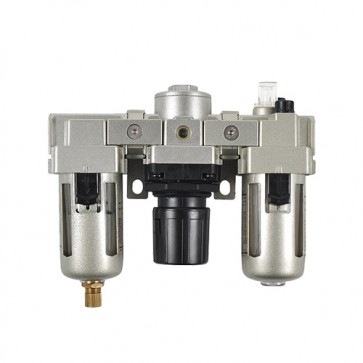

Air filter combination pneumatic components pdf descriptions:
Name: Air filter combination pneumatic components pdf
SKU: 355123-355134
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Body Material: Prolycarbanate
Accessories: 2 Brackets
Valve Type:With Overflow
Recommended Oil Use:Turbine NO.1 Oil ISOVG32
| Specifications | ||||||
| Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(G) | Weight(kg) | Protective Cover | Pressure Regulating Range |
| 355123 | 90 | M5 | 1/16'' | 0.31 | Not Available | 0.05-0.7MPa |
| 355124 | 500 | 1/8'' | 1/8'' | 0.70 | Available | 0.05-0.85MPa |
| 355125 | 1/4'' | |||||
| 355126 | 1500 | 1/4'' | 1/8'' | 1.10 | ||
| 355127 | 3/8'' | |||||
| 355128 | 2000 | 1/4'' | 1/8'' | 1.18 | ||
| 355129 | 3/8'' | |||||
| 355130 | 4000 | 3/8'' | 1/4'' | 2.30 | ||
| 355131 | 1/2'' | |||||
| 355132 | 4500 | 3/4'' | 1/4'' | 2.40 | ||
| 355133 | 5000 | 3/4'' | 1/4'' | 4.00 | ||
| 355134 | 1'' | |||||
Air filter combination pneumatic components pdf features:
1. Using modular connection, it can be used in combination or alone, high efficiency.
2. High-quality filter so its filter effect is better and it also has a longer lifetime.
3. Stainless steel bracket, so more stable and more relieved to use.
4. Exquisite appearance, surface oxidation spray treatment, more durable and corrosion resistant.
5. The use of air compression can store energy so as to achieve centralized gas supply.
6. Fully sealed connection, no leakage phenomenon and not easy to be loosed.
Air filter combination pneumatic components pdf advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components. Besides, Using modular connection, it can be used in combination or alone, high efficiency. What is more, The exquisite appearance, surface oxidation spray treatment, so it is more durable and corrosion resistant.
