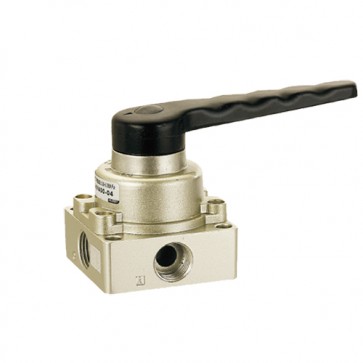

Hand switching pneumatic manual valve description:
Name: Hand Switching Valve
Working Medium: Filter Compressed Air
Working Pressure Range: 0~1.0MPa
Working Temperature: -10~60℃

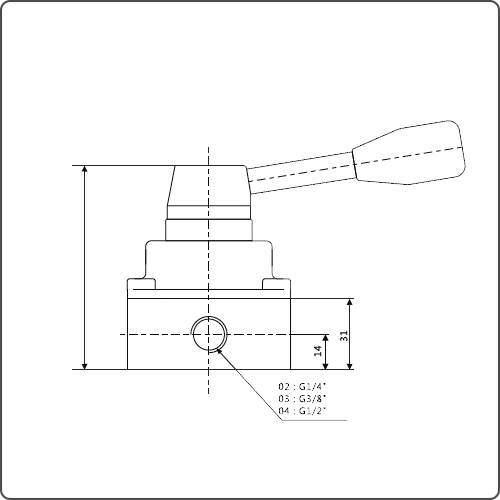

SKU: 356086 Port Size: G1/4"
SKU: 356087 Port Size: G3/8"
SKU: 356088 Port Size: G1/2"
Hand switching pneumatic manual valve features:
1. Side connection and bottom connection are available for all specifications for use’s option.
2. Its own structure is simple, easy to install and maintain.
3. Flexible installation, it can be installed directly on the line or in the control panel.
4. Fully sealed connection, no leakage phenomenon and not easy to be loosed.
Hand switching pneumatic manual valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. A manual valve is generally the least expensive of any valve configuration and has low maintenance costs. In addition to quick, quarter turn on-off operation, manual valves are compact, require no lubrication, and give tight sealing with low torque. Side connection and bottom connection are available for all specifications for use’s option. And its own structure is simple, easy to install and maintain.
