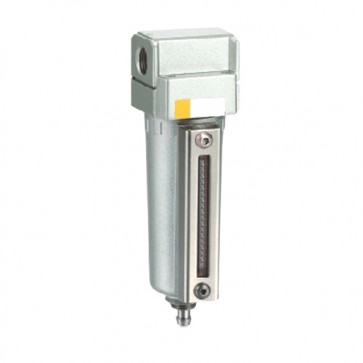

2000~5000 series air purifier permanent filter 355182

Name: 2000~5000 series air purifier permanent filter
SKU: 355182-355190
Accessory: Bracket
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa

SKU: 355182

about Engdas Tools

engdas company

Description

Details

2000~5000 series air purifier permanent filter descriptions:

Name: 2000~5000 series air purifier permanent filter
SKU: 355182-355190
Accessory: Bracket
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Filter Material: Brass/PE
Body Material: Aluminum Die Casting

Specifications
 Model Rated Flow(L/Min) Port Size(G)  Bowl Capacity(cm') Weight(kg)
 355182  750 1/8'' 15 0.24
355183 1/4''
355184  1500 1/4'' 20 0.36
355185  3/8''
355186 4000 3/8'' 45 0.71
355187 1/2''
355188 6000 3/4'' 45 0.25
355189 7000 3/4'' 130 1.20
355190 1''

air purifier permanent filter

air purifier permanent filter

2000~5000 series air purifier permanent filter features:

1. Push in self-locking structure, can prevent external interference.
2. Products meet the quality standards, and it has a longer service life.
3. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
4. Complete size specifications to meet different needs.
5. Filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.

2000~5000 series air purifier permanent filter advantages:

As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.What is the advantages of the filter? Our filters are designed for the removal of solid contaminants and the separation of bulk liquids. The filters are designed for protecting critical applications and expensive pneumatic equipment by preventing oil aerosols and sub-micronic particles from damaging expensive componentsAnd its push in self-locking structure can prevent external interference.Besides, Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.

air filter pneumatic system
