Description
Details
Air source treatment primary pressure regulating valve descriptions:

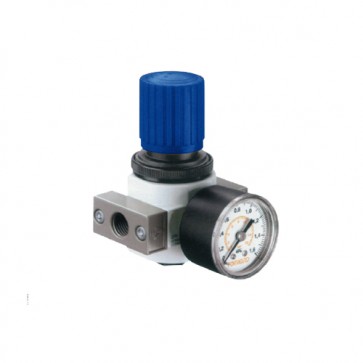

Name: Air source treatment primary pressure regulating valve
SKU: 355419-355426
Body material: Zinc die-casting
Working medium: Compressed air
Features of structure: Diaphragm type regulator
Mounting type: Pipe/Plate/Foot mounting
Input pressure: 1~16bar
Working pressure range: 0.5~12bar/0.5~7bar
Working temperature range: 0~60℃
| Specifications | |
| SKU | Port Size(G) |
| 355419 | 1/8'' |
| 355420 | 1/4'' |
| 355421 | 3/8" |
| 355422 | 3/8'' |
| 355423 | 1/2'' |
| 355424 | 3/4" |
| 355425 | 3/4" |
| 355426 | 1" |
Air source treatment primary pressure regulating valve features:
1. The meter uses the standard module design, it can arbitrarily decompose the combination to meet the needs of different pneumatic system.
2. The pressure regulator comes with a pressure gauge that accurately displays the pressure index so it is more convenient to use.
3. The scale of the pressure gauge is clear and the display is accurate.
4. Pressure regulating valve working principle,Complete size specifications to meet different needs.
5. Fully sealed connection, no leakage phenomenon and not easy to be loosed.
Air source treatment primary pressure regulating valve advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use. The greatest advantage that the regulator offers is the ease of use. Because a regulator operates when one capacitor each is simply attached to the input and output sides, in substance little design is needed. And the modern design techniques and High quality material processes have enabled our regulators to remain the best choice for a number of applications. Our regulator maintain inputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed. And the meter uses the standard module design, it can arbitrarily decompose the combination to meet the needs of different pneumatic system. Besides, The pressure regulator comes with a pressure gauge that accurately displays the pressure index so it is more convenient to use.
