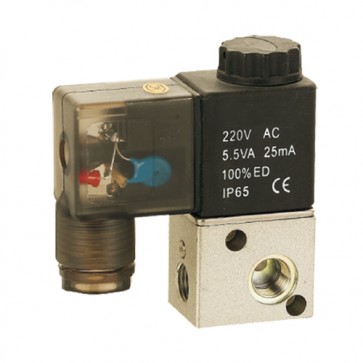

Aluminum alloy material 12v solenoid valve 356030

Name: Solenoid Valve
SKU: 356030-356031
Working Medium: Air(40 Micron Filtered)
Acting Type: Inner Guide Type
Working Pressure Range: 0~0.8MPa
Max Pressure Resistance: 1.2MPa
Gas Temperature: 5~50℃

SKU: 356030

about Engdas Tools

engdas company

Description

Details

Aluminum alloy material 12v solenoid valve description:

Name: Solenoid Valve
SKU: 356030-356031
Working Medium: Air(40 Micron Filtered)
Acting Type: Inner Guide Type
Working Pressure Range: 0~0.8MPa
Max Pressure Resistance: 1.2MPa
Gas Temperature: 5~50℃
Ambient Temperature: -10~+60℃
Lubricate: Not Necessary
Voltage Range: ±10%
Power Consumption: AC:4.5VA DC:3W
Insulation&Protection Class: F Class.IP65
Max.Frequency: 10 Times/Sec
Body Material: Aluminum Alloy
Shortest Activate Time: 0.05 Second
Insulation&Protection Class: F Class.IP65

12v solenoid valve

12v solenoid valve

Aluminum alloy material 12v solenoid valve features:

1. Choosing aluminum alloy for body material, more durable.
2. The interior is designed to make the product more durable and more comfortable.
3. Made of copper core coil, resulting in more stable magnetic, so the switch control is more accurate.
4. Solenoid valves are particularly safe to use, especially for corrosive, toxic or high-temperature media.

Aluminum alloy material 12v solenoid valve advantages:

Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. Choosing aluminum alloy for body material, so it is more durable. And the interior is designed to make the product more durable and more comfortable. Besides, it made of copper core coil, resulting in more stable magnetic, so the switch control is more accurate.

solenoid valve working principle
