High efficiency pressure regulator with filter descriptions:

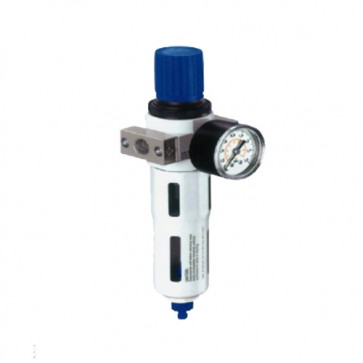

Name: High efficiency pressure regulator with filter
SKU: 355411-355418
Cup material: PC
Body material: Zinc die-casting
Working medium: Compressed air
Mounting type: Pipe mounting or foot mounting
Manualc valve drain working pressure: 1~16bar
Automatic valve drain working pressure: 1.5~12bar
Working pressure range: 0.5~12bar/0.5~7bar
Filter precision: 40μm/50μm
Working temperature range: 0~60℃
Maximum capacity of condensate fluid: 22ml

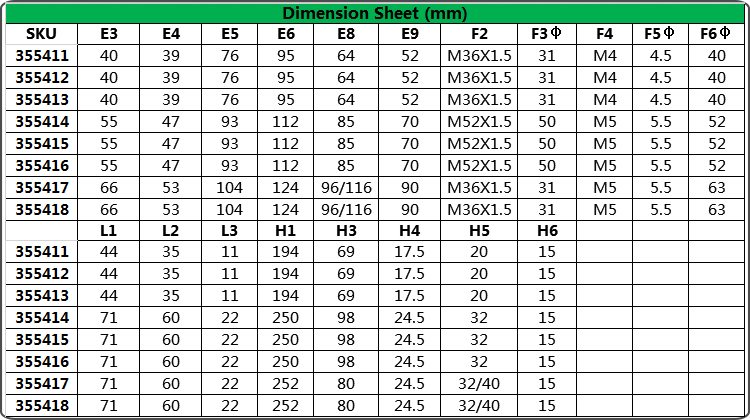

| Specifications | |
| Model | Port Size(G) |
| 355411 | 1/8" |
| 355412 | 1/4'' |
| 355413 | 3/8'' |
| 355414 | 3/8" |
| 355415 | 1/2'' |
| 355416 | 3/4" |
| 355417 | 3/4" |
| 355418 | 1" |
High efficiency pressure regulator with filter features:
1. High-quality filter so its filter effect is better and it also has a longer lifetime.
2. The water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate.
3. Polymer material and excellent sealing, high-strength heat so it is not easy to aging.
4. Unique diversion structure that allows the flow of gas to produce proper rotation, thereby more effectively separating the liquid in the gas and reliably filtering the solid particles.
5. Push in self-locking structure, can prevent external interference.
High efficiency pressure regulator with filter advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.What is the advantages of the filter and regulator? An air filter can clean compressed air. It strains the air and traps solid particles (dust, dirt, rust) and separates liquids (water, oil) entrained in the compressed air. And each of our regulator is available with an assortment of variations which enable one regulator to perform multiple functions. All regulators are built to the highest quality standards, recognized around the world for their performance, durability and reliability. Our regulator maintain inputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed. And the water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate.
