Manufacture high quality air filter with regulator descriptions:

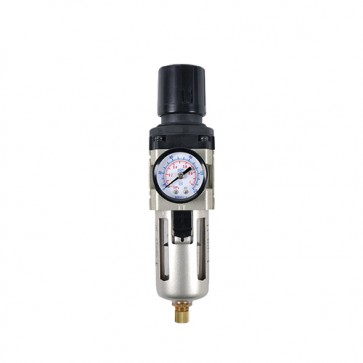

Name: Manufacture high quality air filter with regulator
SKU: 355103-355112
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Body Material: Prolycarbanate
Accessory: Bracket
Valve Type:With Overflow
| Specifications | ||||||
| Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(g) | Weight(kg) | Protective Cover | Pressure Regulating Range |
| 355103 | 100 | M5 | 1/16'' | 0.15 | Not Available | 0.05-0.7MPa |
| 355104 | 550 | 1/8'' | 1/8'' | 0.36 | Available | 0.05-0.85MPa |
| 355105 | 1/4'' | |||||
| 355106 | 2000 | 1/4'' | 1/8'' | 0.64 | ||
| 355107 | 3/8'' | |||||
| 355108 | 4000 | 3/8'' | 1/4'' | 1.23 | ||
| 355109 | 1/2'' | |||||
| 355110 | 4500 | 3/4'' | 1/4'' | 1.26 | ||
| 355111 | 5500 | 3/4'' | 1/4'' | 1.25 | ||
| 355112 | 1'' | |||||
Manufacture high quality air filter with regulator features:
1. The water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate.
2. Polymer material and excellent sealing, high-strength heat so it is not easy to aging.
3. Pressure loss is very small, and high water efficiency.
4. Choosing aluminum alloy for body material, more durable.
5. Filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.
Manufacture high quality air filter with regulator advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.What is the advantages of the filter and regulator? An air filter can clean compressed air. It strains the air and traps solid particles (dust, dirt, rust) and separates liquids (water, oil) entrained in the compressed air. And each of our regulator is available with an assortment of variations which enable one regulator to perform multiple functions. All regulators are built to the highest quality standards, recognized around the world for their performance, durability and reliability. The water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate. And it is choosing aluminum alloy for body material, so it is more durable.
