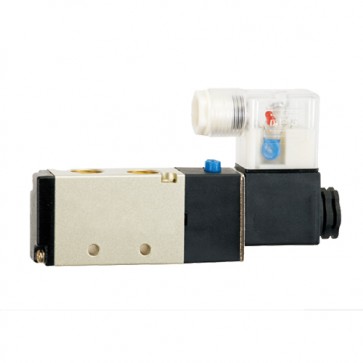

Two-position five-way solenoid controlled valve description:
Name: Solenoid Valve
SKU: 356007-356012
Working Medium: Air(40 Micron Filtered)
Acting Type: Inner Guide Type
Working Pressure Range: 0.15~0.8MPa
Max Pressure Resistance: 1.2MPa
Working Temperature: 5~50℃
Voltage Range: ±10%
Power Consumption: AC:4.5VA DC:3W
Insulation&Protection Class: F Class.IP65
Max.Frequency: 5 Times/Sec
Shortest Activate Time: 0.05 Second
Working Form: Lead Wire or Connector Type
Two-position five-way solenoid controlled valve features:
1.There are a variety of specifications to choose from to meet more needs.
2. Supporting the ring, so that the product more tightly sealed.
3. Solenoid valves are particularly safe to use, especially for corrosive, toxic or high-temperature media.
4. Switch signal control, so it is very convenient to connect with the industrial computer.
Two-position five-way solenoid controlled valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. And it supporting the ring, so that the product more tightly sealed. It is also has switch signal control, so it is very convenient to connect with the industrial computer.
