With overflow air regulator filter with gauge descriptions:

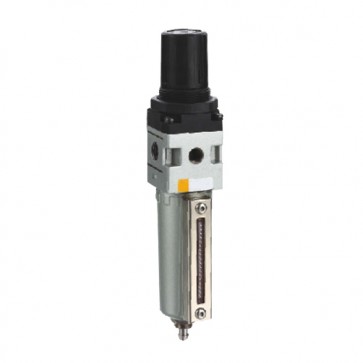

Name: With overflow air regulator filter with gauge
SKU: 355200-355208
Accessory: Bracket
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Body Material: Aluminum Die Casting
Pressure Regulating Range: 0.05~0.85MPa
Valve Type: With Overflow
| Specifications | ||||
| Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(G) | Weight(kg) |
| 355200 | 550 | 1/8'' | 1/8'' | 0.46 |
| 355201 | 1/4'' | |||
| 355202 | 2000 | 1/4'' | 1/8'' | 0.72 |
| 355203 | 3/8'' | |||
| 355204 | 4000 | 3/8'' | 1/4'' | 1.33 |
| 355205 | 1/2'' | |||
| 355206 | 4500 | 3/4'' | 1/4'' | 1.36 |
| 355207 | 5500 | 3/4'' | 1/4'' | 1.95 |
| 355208 | 1'' | |||
With overflow air regulator filter with gauge features:
1. The use of embedded square pressure gauge, saving installation space.
2. Polymer material and excellent sealing, high-strength heat so it is not easy to aging.
3. Fully sealed connection, no leakage phenomenon and not easy to be loosed.
4. Filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.
5. Choosing aluminum alloy for body material, more durable.
With overflow air regulator filter with gauge advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.What is the advantages of the filter and regulator? An air filter can clean compressed air. It strains the air and traps solid particles (dust, dirt, rust) and separates liquids (water, oil) entrained in the compressed air. And each of our regulator is available with an assortment of variations which enable one regulator to perform multiple functions. All regulators are built to the highest quality standards, recognized around the world for their performance, durability and reliability. The filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments. And the water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate.
