Description
Details

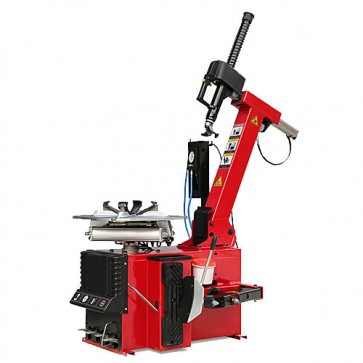

24" diameter tilting pneumatic tire changer of description
Rim clamp from outside: 10''-22''
Rim clamp from inside: 12''-24''
Max.wheel diameter:1040 mm
Tire width: 3''-15''
Working pressure: 8-10 bar
Voltage:380 V/220 V/ 110V
Power: 1.0 KW/1.5 KW
Machine weight: 208 kg
24" diameter tilting pneumatic tire changer of feature
1. Through the push-pull arm to dismount tyres.
2. It can suit different rim ranges to adjust mobile slider.
3. Prossess the functiong of rapid inflation and air pressure control.
4. It will improve work efficiency of the pneumatic push-pull locking automatically.
5. We have motion structure of four automatic alignment gripping jaws on the swivel plate as link mechanism,
has synchronization performance and it can self-centering when gripping from outside to inside.
6. The changing working head , jaws, crowbar and spade are all equipped with protector to ensure no hurt to the rim.
7. The noise is low when the machine is running.
