Description
Details
-3 phase input voltage.
-High efficiency and low no-load loss.
-Simple structure,easy to operate,convenient to maintain,and low noise.
-Suitable for welding low alloy steel ,stainless steel,steel and cast iron.

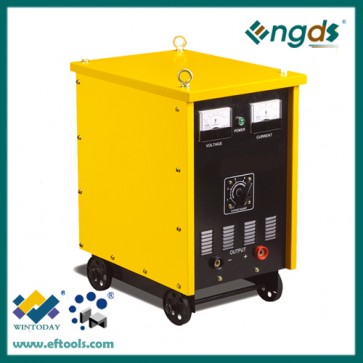

| Item# | 353139 | 353140 | 353141 | 353142 |
| Power voltage | 380-400V | 380-400V | 380-400V | 380-400V |
| Rated input power | 18KVA | 20.5KVA | 28KVA | 40KVA |
| No-load voltage | 55-68V | 55-68V | 60-80V | 60-80V |
| Rated output current | 250A | 315 | 400A | 500A |
| Current range | 80-250A | 120-315A | 140-400A | 140-500A |
| Adjusting steps | 7 | 7 | 7 | 7 |
| Rated duty cycle | 35% | 35% | 35% | 35% |
| Insulation class | F | F | F | F |
| Protection class | IP21S | IP21S | IP21S | IP21S |
| Usable electrode | 2.5-4mm | 3.2-4mm | 3.2-6mm | 3.2-6mm |
| Weight | 94kg | 110kg | 116kg | 125kg |
| Size | 640x440x750mm | 640x440x750mm | 680x580x920mm | 680x580x920mm |
Packing&Shipping
According to the customer's need,we ship goods by air,sea and express.
Packiing:Standard Carton.
Delivery Detail:30-35 days after received the 30 percent deposit.
