Description
Details

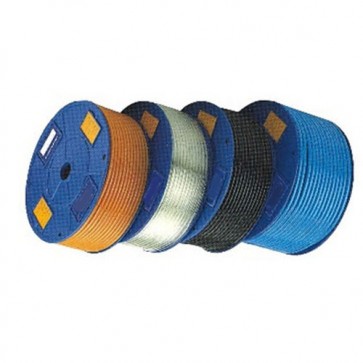

Long service life and low price PU Tube 354099-354104:
| SKU | 354099 | 354100 | 354101 | 354102 | 354103 | 354104 |
| MODE | PU-0425 | PU0604 | PU0805 | PU0806 | PU1065 | PU1208 |
| Working Medium | Air,Water,Corrosion-free oil | |||||
| Working Pressure | 0~8kgf/cm² | |||||
| Ambient and Fluid Temperature | -5~30℃ | |||||
| External Diameter | 4 | 6 | 8 | 8 | 10 | 12 |
| Internal diameter | 2.5 | 4 | 5 | 6 | 6.5 | 8 |
| Standard length(m) | 200 | 200 | 100 | 100 | 100 | 100 |
| Minimum bend radius | 10 | 15 | 15 | 20 | 27 | 37 |
| Breakdown Pressure(kgf/cm²) | 10 | 24 | 24 | 24 | 24 | 24 |
