Description
Details

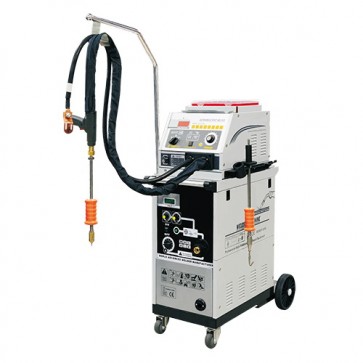

Description of spot weld with mig machine:
Input Voltage: 220V/380(50/60Hz)
Repair Machine:
Input power: 21KVA
Input Current: 55A
Max Current: 5400A
Output Voltage: 1-13V
Welding Time: 0-99s
Spot welding Thinkness: 0.8+1.2mm
Voltage adjustable grade: A B C
Size: 87*46*165cm
Welder:
Rated Input Current: 16.8A
Max Input Current: 12.5A
Output Voltage: 35A-250A
Output Current: 17V-26.5V
Duty Cycle Rate: 35%
Non-load Voltage: 20-37V
Insulation Grade: F
Welding Wire Spec.: Dia 0.8-1.0mm
Welding Wire Reel Spec.: Dia 300mm
Voltage adjustable grade: 6/10
Weight: 138kg
Accessories of spot weld with mig machine:
1. Portable air tube
2. Durable chain3. Dent pulling hammer
3. Pulling hammer with hook
4. Pneumatic vacuum cupule
5. Multifunctional welding gun
6. Anti-blocking agent
7. Gas regulator
8. Single-sided welding gun
9. Professional spanner for welding gun
10. Earth clamp
Features of spot weld with mig machine:
1. High quality 2 in 1 machine. It can use as welder or repair machine.
2. Welding gun test function.
3. Professional vacuum cupule.
4. High efficient main transformer.
5. High quality relay.
6. High precision time and power adjustment system.
7. Humanity handle for easy move.
8. Highquality two roll driven wire feeder.
9. Switchable pulling hammers
10. Convenient tool box and tray for easy save and move.
